SAE 100R12 4 Wire Spiral High Pressure Hydraulic Rubber Hose
Contact US
About US

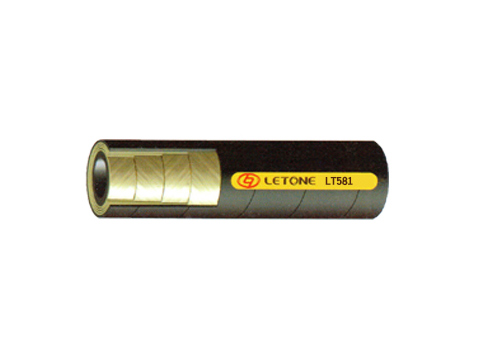

SAE 100R12 4 Wire Spiral High Pressure Hydraulic Rubber Hose
LT581
Application：Suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
Tube ：The hose consists of a heat-resistant synthetic rubber inner layer
Reinforcement： Four-layer steel wire winding layer
Cover：Oil-resistant and weather resistant synthetic rubber The outer rubber layer is composed
Temperature range ：40 ℃ ~ + 121 ℃ (- 40 ° F ~ + 250 ° F)
Standard：Hose execution SAE100R12 standard, GB/T10544-2013 standard
Product Parameter

I.D.

(mm)

I.D.

(in.)

I.D. (mm)

O.D.(mm)

Max.W.P.

Min. B.P.

Min. B.R.

Min

Max

Max

(MPa)

(MPa)

(mm)
10  3/8 9.3 10.1 21.0 28 112 125
13  1/2 12.3 13.5 24.6 28 112 180
16  5/8 15.5 16.7 28.2 28 112 200
19  3/4 18.6 19.8 31.5 28 112 240
25 1    25.0 26.4 39.2 28 112 300
32 1 1/4 31.4 33.0 48.6 21 84 420
38 1 1/2 37.7 39.3 55.0 17.5 70 500
51 2    50.8 52.0 68.3 17.5 70 640
