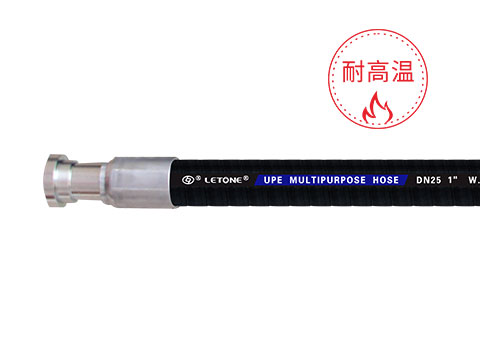

UPE high-pressure multifunctional industrial hose
LT1202H
Application:This product is widely used in chemical, steel, construction, food, medicine and other fields. It has super wear-resistant and corrosion-resistant product characteristics and high saturation lining, which means that the product is almost free of any substances , Corrosive chemicals, etc.), the product ’s absolutely neutral odor also determines its suitability for the food and beverage industry and the production of pharmaceutical products
Inner layer:UPE
Reinforcement layer:2-4 layers of steel wire winding
Outer layer:black / red / yellow / blue ozone-resistant, UV-resistant, wear-resistant NV or EPDM rubber
Temperature range:-30 ° C ~ + 100 ° C (-22 ° F ~ + 212 ° F) steam can reach + 135 ° C (within 30 minutes)
Reference standard:EN12115
Product Parameter

SIZE

I.D.

W.P.

B.P.

(in.)

(mm)

(MPa) (MPa)
3/16"-2 5 42 166
1/4"-2 6 40 160
5/16"-2 8 35 140
3/8"-2 9 33 132
1/2"-2 12 28 110
5/8"-2 16 25 100
3/4"-2 19 22 85
1"-2 25 17 65
1 1/4"-2 31 13 50
1 1/2"-2 38 9 36
2"-2 50 8 32
1/2"-4 12 50 166
5/8"-4 16 45 180
3/4"-4 19 42 168
1"-4 25 38 152
1 1/4"-4 31 33 130
1 1/2"-4 38 29 116
2"-4 50 25 100
